WHICH IS THE BEST ZOOM LENS FOR SUPER-8 PROJECTION?

When a Super-8 image comes from a very sharp film, if projected with professional projectors (CLICK HERE TO READ MORE), they will fill screens up to 6 or 7 meters wide with an atonishing quality, especially considering that the frame measures only 5.79 mm wide by 4:01 mm high.

On such large screens, to best projection quality, is required not only a powerful light source (xenon or HTI) , but also a first class steadiness and, above all, a good lens.

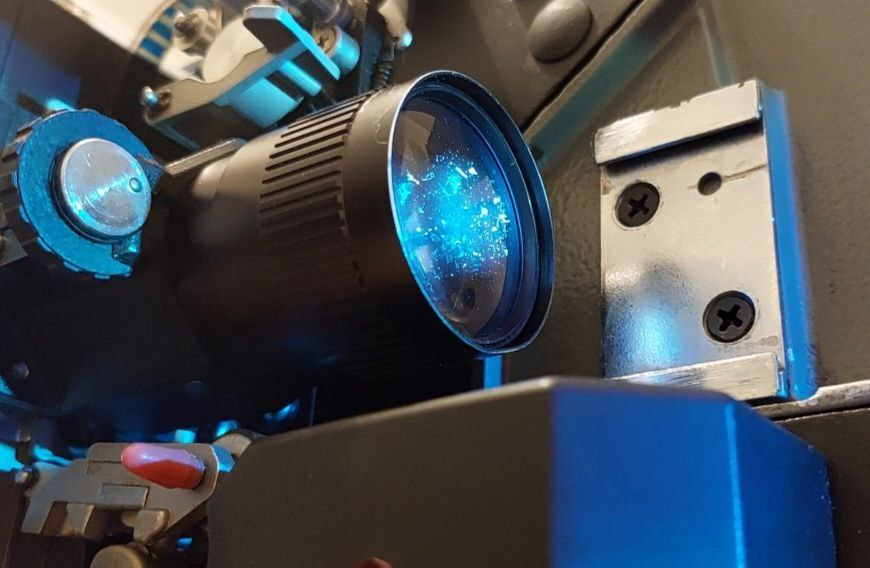

This test analizes the performance of the best lenses ever made for Super-8, using a Fumeo 9145 Xenon 500 Stereo projector with a micrometrical focussing system.

Fumeo 9145 Xenon 500

Fumeo 9119

BEFORE THE TEST.

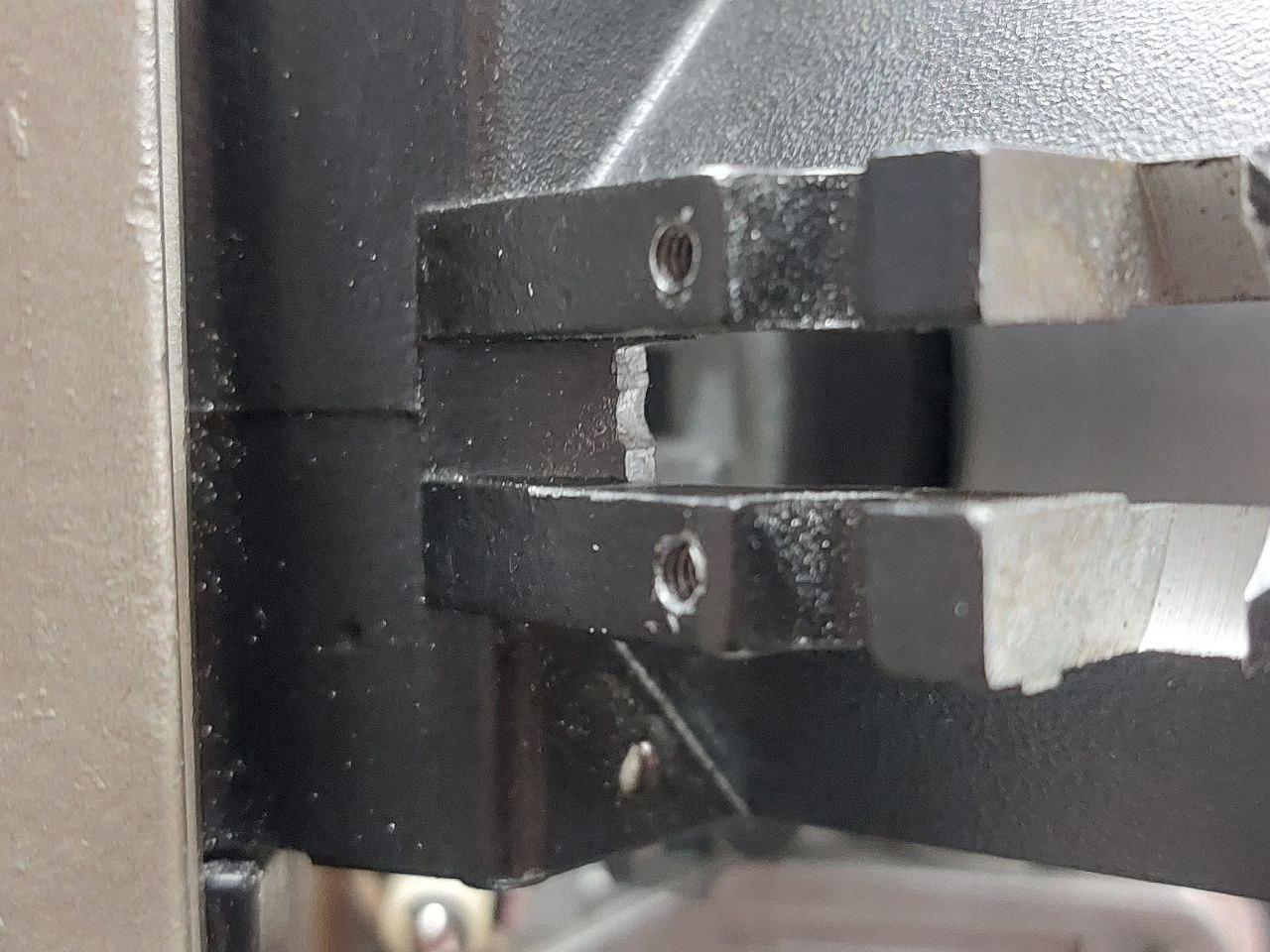

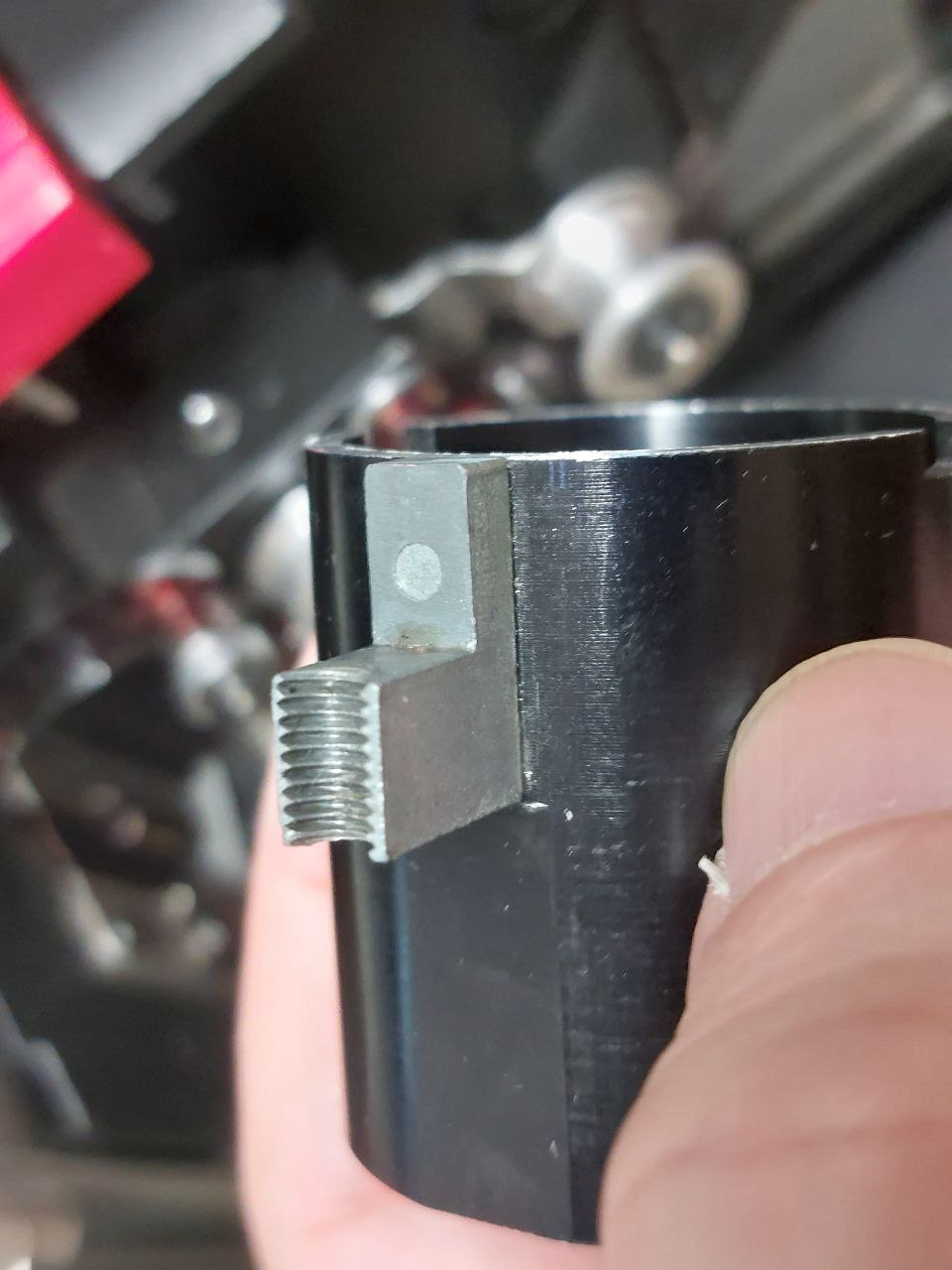

The Fumeo projectors have their lens holder valid for the European standard caliber, but they were mainly designed to be used with the Isco / Schneider range, so the lens holder had to be slightly modified by my friend José Manuel so that the micrometric focus had a range longer.

EUMIG SUPROVAR f 1.0 12-5-25 MM

This zoom lens, designed and built by "the Wizards of Vienna" (as Eumig was called by the beloved and late Ivan Watson,  columnist for the British magazine MOVIE MAKER), is absolutely historic: it´s the first f 1.0 zoom ever produced in the World, with a design finished in 1967, and which was available the following year.

Definition: very sharp image.

Contrast: Good,  but not excellent due to the glass old one-layer coating system (despite being first class during 60s).

Colours: good.

Construction: excellent. The best of all lenses, with an all-metal barrel that it´s easy to disassemble for service.

ISCO CINELUX f 1.1 11-30 MM

It´s considered the non plus ultra of zoom lenses manufactured in Europe, with an enormous focal range. It is the final version of the well-known Schneider design, manufactured with Schott glass and with a multicoated system improved. It was the verylast zoom lens available, on Isco's price list until the beginning of this century.

Definition: very sharp image, fully flat field of border to border (very important for anamorphic presentations)

Contrast: Excellent, the best of all, thanks to its latest generation multicoated glass.

Colors: good but with a duller tone than others.

Construction: so so only. The barrel is made of poor quality plastic. Part of the optical group is glued with balm and is difficult, if not impossible, to separate.

MEOPTA CORRIGON f 1.1 12.5 - 25 MM

The quality of this lens is surprising, the best zoom lens produced behind the Iron Curtain. Nobody knows why it was done. This unit was given to me by my Galician friend Pichi Pedrosa. He found it some years ago in a photographic store in London, where the dealers were unaware of its use. This zoom lens is much longer than any other, so in the Fumeo, you have to put aside anamorphic to swing open the prime lens holder.

Definition: Very sharp picture.

Contrast: Very good.

Colours: Excellent (crisp and bright)

Construction: excellent. With an all-metal barrel that it´s easy to disassemble for service.

FUJINON f 1.2 21.5 - 43 MM

This lens was originally intended for long distance projection or for use in telecine machines. Its only drawback is that, at a certain focal length, it does not focus if the screen is less than three meters away.

Definition: Sharp image.

Contrast: Good.

Colours: Good (slightly cold)

Construction: excellent. With an all-metal barrel that it´s easy to disassemble for service.

EUMIG SUPROGON F 1.2 12.5 --25 MM

Sold too as Bolex brand. It´s the cheapest and easiest lens to find but full of virtues: nothing but good can be written about it. It was manufactured in two versions: the latter with multi-coated lenses to improve contrast.

Definition: Sharp image.

Contrast: Good.

Colours: Good.

Construction: Plastic barrel but of high quality and easy to repair.



KERN f 1.1 23MM

In the early 1970s, Ivan Watson rated it as the sharpest projection lens ever made. Projection picture with this non-zoom lens is very sharp, fully flat field from edge to edge, but it only has one layer of optical coating, as was normal in the late sixties, so the contrast is not as good as in more recent lenses. Su luminosidad es realmente f 1.0

Definition: Very sharp image, flat field.

Contrast: Good.

Colours: Excellent

Construction: Metallic barrel, easy to repair.

VERDICT.

With the Fumeo 9145 xenon 500, for anamorphic projections, I will use the zoom lens that comes from the factory: the Isco Cinelux f 1.1 11-30 mm, for its great quality... as long as the lens lasts, because, sooner or later, its plastic barrel ends up breaking. For flat projections, I will use the Meopta Corrigon f 1.1 12.5-25:  it provides a very sharp image and the best colour.

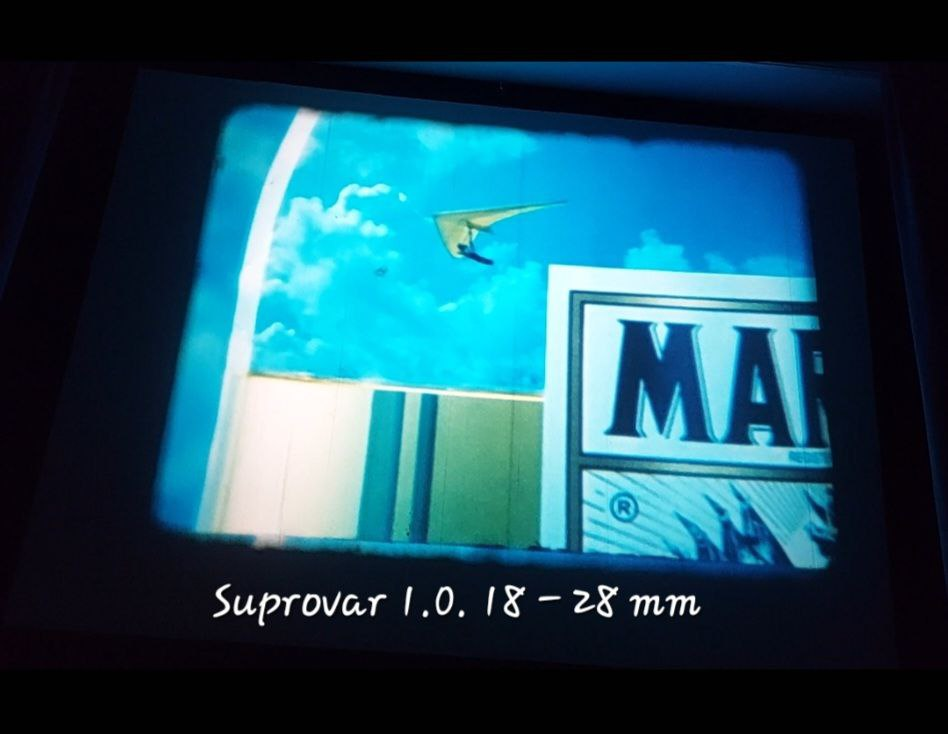

For purely visual beauty considerations, I will use the Eumig Suprovar f 1.0 18-28mm exclusively with the Fumeo 9119 projector: it is also a very sharp zoom lens and its aesthetics are very much in line with that of the projector, especially using the French Hypergonar anamorphic.

Important note:

1) Excellent Fujinon f 1.0 14-28 mm and Canon f 1.0 17-28 zoom lenses don´t focus in this projector.

2) There are three Elmo lenses, manufactured by Kowa, of very good quality: the called "pair" zooms, 1.0, 1.2 and 1.4

They cannot be checked in this test because the diameter of the barrel is larger than the European one. The 1.0, while sharp, doesn't provide a flat edge-to-edge picture, something that the long-distance 1.2 and 1.4 do. In my opinion, Elmo f 1.2  25-50 mm is perhaps the sharpest zoom lens for Super-8

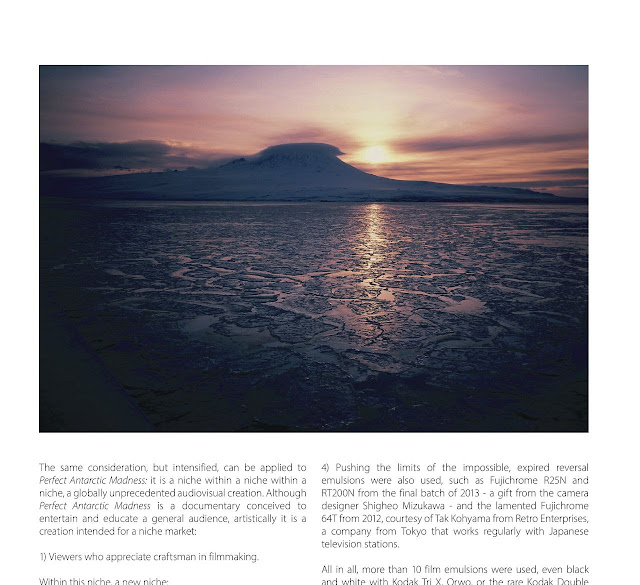

"PERFECTA LOCURA ANTÁRTICA" EN SILVERGRAIN CLASSICS / Perfect Antarctic Madness in SilverGrain Classics

 SILVERGRAIN CLASSICS  la revista que, lujosamente impresa en Alemania, se distribuye en inglés a mas de 70 países, se ha convertido con los años en una especie de biblia del mundo fotoquímico tanto en el ámbito creativo, con los portafolios de los principales adalides internacionales que emplean película, como en el terreno técnico, desvelando novedades del sector antes que cualquier otro medio impreso. SILVERGRAIN CLASSICS, the magazine lavishly printed in Germany and distributed in English to more than 70 countries around the world, has become over the years a kind of bible of the photochemical world both in the creative field, with the portfolios of the main international champions that use film, as in the technical field, revealing new developments in the sector before any other printed medium.

No es de extrañar que la legendaria Kodak, una marca con nosotros desde el siglo XIX, se reserve la última página de Silvergrain Classics para la publicidad de sus emulsiones. It´s not surprising that the legendary Kodak, a brand with us since the 19th century, reserves the last page of Silvergrain Classics for advertising its emulsions.

A los editores de una revista tan peculiar, el alemán Marwan Mozayen y la norteamericana Charys Schuler, siempre con la mirada puesta en la vanguardia de lo que algunos denominan analógico, no es extraño que les haya llamado la atención un proyecto casi imposible como "Perfecta Locura Antártica", así que le dedican un colosal artículo de seis páginas en el número de primavera de 2024, que se puso a la venta el 21 de marzo (en España, se puede conseguir en los principales aeropuertos o bien, por correo, pedido a la editorial: cada ejemplar cuesta sólo 19.90 €). The editors of such a peculiar magazine, the German Marwan Mozayen and the North American Charys Schuler, always with their eyes set on the avant-garde of what some call analogue, it is not surprising that an almost impossible project like "Perfect Antarctic Madness" has caught their attention, so the magazine dedicated a colossal six-page article to this S8 film project in the spring 2024 issue, which went on sale on March 21 (it can be obtained at the main airports or, by mail, ordered to the publisher: each copy costs only €19.90)

"Perfecta Locura Antártica" es un documental revolucionario que marca un hito en la historia del cine, llevando la artesanía cinematográfica en paso estrecho a extremos insospechados. "Perfect Antarctic Madness" is a revolutionary documentary that marks a milestone in the history of cinema, taking cinematographic craftsmanship in a narrow film gauge to unsuspected extremes.

Filmado en la Antártida con película de Súper-8 cargada artesanalmente en cartuchos de Single-8, con una cámara que cumple medio siglo en 2024, este proyecto único e insólito representa la fusión entre la tradición fílmica, la artesanía, la pericia, la innovación técnica, la crisis medioambiental y la historia. Las fotografías fueron disparadas también en película (tanto inversible, de diapositivas, como Instax tipo Polaroid). Filmed in Antarctica with Super-8 film hand-loaded into Single-8 cartridges, with a camera that turns half a century in 2024, this unique and unusual project represents the fusion between film tradition, craftsmanship, expertise, innovation technique, global warming, the environmental crisis and history. The photographs were also shot on film (both reversal, negative and Instax type Polaroid).

El cineísta Ignacio Benedeti se embarcó en una expedición épica, superando desafíos inimaginables, para capturar la esencia auténtica de un continente helado abocado a la desaparición por el calentamiento global. Filmmaker Ignacio Benedeti embarked on an epic expedition, overcoming unimaginable challenges, to capture the authentic essence of a frozen continent doomed to disappearance due to global warming.

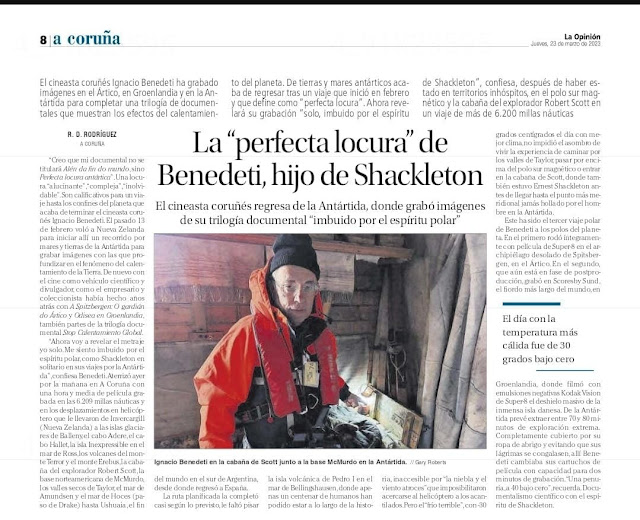

Este trabajo fílmico ya mereció la portada de medios locales, como el diario "La Opinión" de La Coruña. This film work has already earned the cover of Spanish media.
