9000 MEMBERS IN SUPER8 MM GROUP

This week the Super 8mm group, the largest on Facebook dedicated to the coolest film gauge, has surpassed the 9,000-member barrier! To commemorate this fact, we featured a new cover, with young Spanish filmmaker Andrea Dominguez shooting as it snows in NorthWestern Spain with the Eumig Nautica underwater camera  loaded with Kodak Ektachrome 7294 film.  This picture is a Fujichrome Velvia slide, shot by Alex López. Why is Alex using Velvia? Ektachrome slides are sold locally at 25 euro, but fresh Velvia at 15 euro!!!

Also, very good news for this blog. This week we have exceeded 500,000 readings!!! As most readers, even when the articles are published in Spanish, come from the United States, the texts are increasingly being published in English.

EUMIG 940 MULTIPROCESSOR: IT´S GONE DOWN THE DRAIN!

 I have a special relationship with the Eumig 940 Multiprocessor Stereo projector. It is the first good projector that I bought, when I was a student at the University, at the Arpí store on the Ramblas in Barcelona, ​​where Mr. Noya allowed me to pay it in monthly installments.

With the 940 I did my first complex soundtrack with stereophonic sound, for the experimental "Universita ... what?" (1981) --shot with my Fuji ZC1000, still with me and in use today!-:



UNIVERSITA...¿QUÉ? (1981) from IB CINEMA Motion Picture Films on Vimeo.

Later, I would stop using it, in favor of other more practical projectors, but I always had it there, because I enjoy looking at it (with its spectacular control console and, above all, its gigantic digital frame counter).

Over time, I got to buy another two units used but in mint pristine condition (one of them now owned by my good friend Alex) and another, defective unit, to cannibalize for parts in the future.



A few days ago, I decided to get one of my two Eumig 940s ready for occasional use in the HAL9000 room at IB Cinema. I cleaned and oiled it carefully, as well as adjusted the speed regulator with the Renzo Stroboscopic Device.

When I was ready, I tested it with "Django" when suddenly, a loud noise started to be heard. I stopped the projection, extracted the film difficultally (one of the drawbacks of this projector is that it cannot be unthread) and I saw with horror what had happened: the worn gear had broken!!!

Fixing this is an operation of major surgery, impossible for me to do. Good thing Alex volunteered to do it !!!

WIDE ANGLE ZOOM LENS FOR 16 MM PROJECTOR... WITH ZERO COST!

One of the problems when I´m inspecting 16mm film in the office is making a screen big enough. Using the standard focal length in 16 mm (50 mm), with the screen on the same table as the projector, only can be obteined a size similar to that of a postcard.

Things get a little better with Kern's 35-65mm,  Swiss made zoom for exceptional performance. And even more so with the Fumeo 25-45mm (actually a 35mm Isco lens with a Sankor converter). I also have a 10mm Isco ultra-wide angle (obtained thanks to Marco Sonetti), but it gives too big an image!

 How did I solve the problem and also with a limited budge? Incredible as it may seem, I have adapting a Super-8 zoom.

How is this possible, if they all have a much smaller barrel, 32mm versus 42mm for the European standard for 16mm projection optics. All? No!

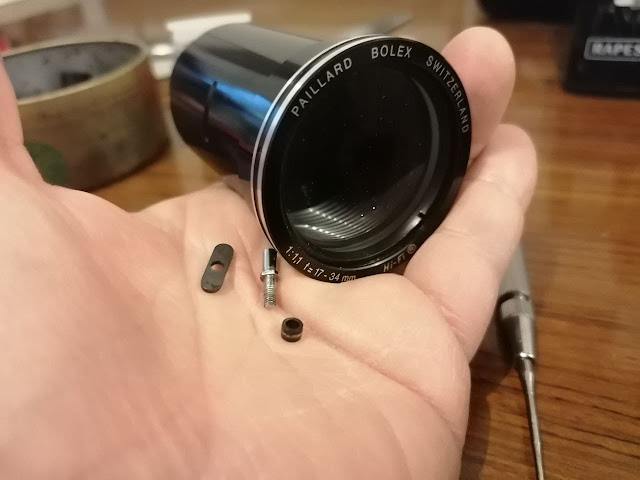

There is a very rare cartridge projector, made by Bolex in Switzerland, whose lenses, incredible as it may seem, come with a 42mm barrel. In its set of optional lenses, there is an exceptional quality zoom, the Bolex f 1.1 from 17 to 34 mm (made by Kern), which, since it cannot be attached to any other Super-8 projector, can be bought almost for peanuts! Mine, in particular, was given to me a few years ago by an English friend, Roy Salmmons.

After a little surgery to remove a python n the barrel, I adapted this extraordinary zoom lens to my desktop 16 mm projector Fumeo 9271 Vatican.

It works!!!Very happy with the result: the focal length range is just what I need, it is bright and very sharp. It has a bit of vignetting, in every corner, but for the purpose that I am going to use it, to check filma, not for public projection, I do not care at all.

In this world, nothing is impossible, with a little of imagination and experimentation.

SCHNEIDER F 1.1 11-30 MM PARA EL SILMA BLUE MEMORY 90

Cuando todo se daba por perdido, cuando ya no había esperanza, la última fábrica de proyectores de cine europea en grandes series, Silma, en ese entonces perteneciente a Robert Bosch, lanzó en 1982 sus dos aparatos de la gama Blue Memory, diseñados por Giullia Moselli.

Los Silma Blue Memory (75 y 90, con pequeñas diferencias, como el objetivo) fueron el último gran esfuerzo italiano para un mercado declinante, con una máquina sumamente electrónica tan hermosa como complicada (¡sus cabezales magnéticos entran en funcionamiento con un servomotor!).

Es tan bonito, el Silma Blue Memory 90, que tengo uno permanentemente en la sala HAL9000 de IB Cinema, no tanto para usarlo, por su talón de Aquiles (carece de rodillo dentada de admisión: ¡es el garfio el que tira de la película!), sino para deleitarme mirándolo.

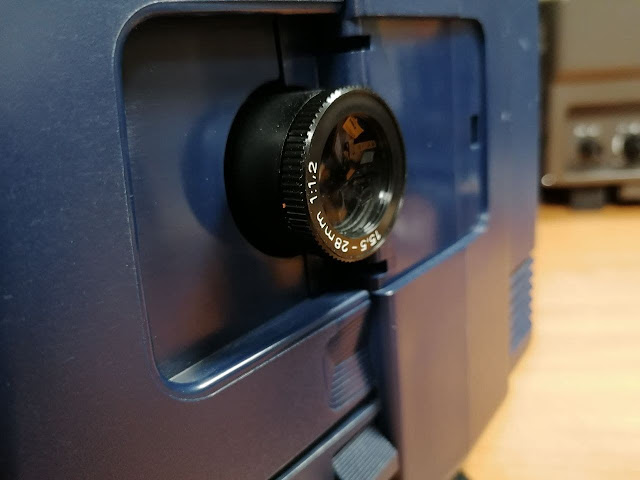

Su objetivo original, aparentemente sin marca, es de calidad calidad, el f 1.2 15.5-28 mm, que, aunque bastardo. está hecho por Scheneider. Sin embargo, recientemente he tenido la fortuna de obtener el non plus ultra de los zoom Schneider, el famoso f 1.1 11-30 mm, en la montura especial para el Silma: ¿qué mejor que comenzar un lunes instalándolo?

El pequeño Silma Blue Memory no sólo es una preciosidad, sino que ahora hace unas proyecciones espectaculares en la pequeña pantalla de la sala HAL9000, para verificar metrajes recién revelados.

SILMA: UN POCO DE HISTORIA.

Cuando Robert Bosch le compró a Rocco Canelli, en 1970,  la histórica firma turinesa famosa por sus proyectores sonoros desde los tiempos del 8 mm normal (que fabricaba incluso para otras marcas acreditadas, como Canon, Bell & Howell,  Fumeo o, entre otros,  Bolex), la venta de aparatos era un mercado en ascenso.
Con la entrada de Bosch, ciertos modelos de Bauer pasaron a fabricarse en Turín e, incluso aquellos modelos de la serie Studio, montados en Sttugart, contenían elementos completos manufacturados en Italia.
En aquella época la cuota de mercado de Silma en Italia era alucinante: ¡el 70 por ciento de los proyectores vendidos!
Con la llegada de Bosch, la producción se incrementa y el número de empleados en la fábrica pasa de 640 a 1.000 en poco tiempo, ¡subiendo a 1.400 en 1974!, año en el que llegaron a colocar 250.000 proyectores. Buena parte de la mano de obra eran mujeres.

1975: EL SÚPER-8 TOCA TECHO.

Como ya hemos publicado varias veces en esta bitácora, el mercado del Súper-8 alcanza su punto álgido en 1975. Las ventas se mantienen estables hasta 1978 y, a partir de ahí, comienzan a declinar. En sólo dos años, Silma se ve forzada a reducir la plantilla de 1.188 trabajadores a 601.
En 1981, cuando Kodak cesa la publicidad de sus películas de Súper-8, Robert Bosch vende Silma a Interbasic, una sociedad de capital riesgo con sede en Luxemburgo, sin relación con el mundo del cine.
Desgraciadamente, con el vídeo ya entrando a todos los niveles, las ventas descienden drásticamente cada año. Silma resiste hasta 1986, con sólo 40 empleados, hasta que se ve forzada a declararse en bancarrota.

MESTRE MATEO: ¡¡¡GRAZAS AO APOIO DO XORNALISTA FRANCISCO GIL!!!

Cando publiquei, hai dous o tres días,  que é toda unha honra que a Academia Galega do Audiovisual estime para a súa consideración en varias categorías dos Mestre Mateo, a unha película tan arriscada e incómoda como "Spitsbergen, o Gardián do Ártico", encantoume recibir  un comentario do xornalista Francisco Gil (sic):

"Felicidades, Ignacio. Para min xa es o gañador en todas esas categorías de maneira incuestionable porque lograches dous fitos épicos: o primeiro, que se alerte desde Galicia sobre o drama do cambio climático e os efectos que xa se están vendo no ártico.  O segundo, que o fagas cunha rodaxe en Súper-8, un formato que esixe un dominio da técnica e da linguaxe que só un mestre como o teu domina con xenial soltura".

Testemuños como este, dunha persoa coa preparación de Francisco Gil, que coñece o difícil que é, tecnicamente, acometer unha rodaxe en Súper-8 destas características, en solitario, é un aliciente para seguir adiante na loita.

Francisco Gil creu en "Spitsbergen, o Gardián do Ártico", cando non era mais que un proxecto que moitos agoreros dicían que non se podería levar ata o final como o tiña concibido: filmado en Súper-8 e con copias finais de exhibición en 16 mm e 35 mm, con todo o traballo integramente en fotoquímico e son exclusivamente analóxico (fotográfico e magnético), ou ben, ¡aínda peor!, pegábanme unha puñada no estómago dicíndome, desde a súa posición de poder dixital (dixital por nomeamento "a dedo"), que "el calentamiento global no es un problema nuestro", e correu, Francisco,  o risco de dedicarlle unha magna reportaxe de tres páxinas que foi distribuído polo suplemento de fin de semana do xornal "La Región".

Sen a menor axuda (mesmo, mais ben, todo o contrario), terminouse felizmente "Spistbergen, o Gardián do Ártico", sen traizoar o seu motor creativo: fotoquímico de principio a fin, algo que tamén souberon apreciar e valorar xente como as persoas que están detrás do Ourense Film Festival, e que, tamén, chamou poderamente a atención aos responsables do ICAA cando, a finais de 2020, chegou a hora de cualificar a longametraxe.

Sen ningún  logo oficial - tan profusos nas outras producións que concorren nas mesmas categorías para os Mestre Mateo-, non só sen o apoio do establishment institucional senón coa súa franca animadversión, séntese un como espido, desamparado, na loita contra o quecemento global.

Non hai institucións detrás: só podo ofrecer os rolos de auténtica película Kodak co documental "Spitsbergen, O Gardián do Ártico", o palmarés  e a profesionalidade de xente da terra galega que me acompañan nesta tarefa, como o narrador Santiago Fernández, o compositor Sergio Moure de Oteyza, o montador Álex López, a produtora executiva Nena Pulido, o técnico de son Marcos Eimil, o supervisor de postprodución Víctor Galdón, a tradutora ao galego M.T. Santos (eu son castelán falante)  e moita dedicación.

Grazas, tamén, a tod@s @s @migos no sector, tras 31 anos de traballo, polo ánimo e o apoio, fronte ao desinterese e a desidia institucional.

Detallada información, para @s académic@s no seguinte vínculo:

ACADEMIA GALEGA DO AUDIOVISUAL



SPITSBERGEN, O GARDIÁN DO ÁRTICO: ARTESANÍA EN SÚPER-8

A paisaxe, varrido por un estremecedor vento xeado, que atemoriza cunha especie de aullidos atroces, é en Spitsbergen inhumano en todos os sentidos.

Horrible, o incesante castigo do xeo contra o casco do "Malmö", rabuñando as entrañas da nave, como  un cataléptico faríao desde un cadaleito.

Cunha sensación térmica inferior a -20 Celsius, o comportamento da Bauer A512, cargada con película Kodak de Súper-8, foi excepcional para inmortalizar unhas paraxes en transo de desaparición por culpa do quecemento global, tal e como se revela no documental de longametraxe "Spitsbergen, o Gardián do Ártico" que, proxectado con película de 16 mm, gañou o Premio Especial XXV aniversario do Festival Internacional de Ourense OUFF25. Foi cualificado polo ICAA a finais de 2020 como "autorizado para todos os públicos".

¡Grazas ao amigo Per Andersson!, por retratarme en plena faena, cámara en man, con pulso firme (as cámaras de Súper-8 non teñen estabilizador).

Este incómodo, pero sorprendente,  traballo cinematográfico atópase narrado cunha estética e unha textura que rememora os clásicos dos anos cincuenta e sesenta, co obxectivo de chegar ao segmento do público de maior idade, o mais remiso a aceptar a realidade do quecemento global.

Pero como o súper-8 é un paso cinematográfico de moda na actualidade, ¡tamén resulta de interese para a xente xove!

¡"Spitsbergen, O Gardián do Ártico" e a única produción galega que só se pode ver proxectada con película! (16 mm e 35 mm)

O trailer, de minuto e medio,  aquí:

SPITSBERGEN O GARDIÁN DO ÁRTICO, trailer with English subtitles from IB CINEMA Motion Picture Films on Vimeo.

WHICH SUPER-8 PROJECTORS TO BUY? PROFESSIONAL MACHINES FOR THEATERS (Part 10 of 10)

 In the last chapter of this series of ten installments (a digest of the original article that was published in SilverGrain Classics magazine), I write about Super-8 projectors for professional use in commercial theaters, capable of projecting in screens of 6 meters (20 ft) or more of wide, even at a great distance, at quality levels that touch the physical limits of the Super-8 system.

IB Cinema Elmo GS1200 Xenon in Sada (La Coruña, Spain)

BIG SCREENS FOR SUPER-8.

The biggest problem for the Super-8 is that the original films can only be shown to a limited audience of people, as most of projectors available to filmmakers were conceived for home use with 100 or 150 W halogen lamps (except for the Elmo GS1200 and the Fumeo 9119, both with a 200W lamp code ESC).

The easiest way to show a Super-8 film to large audiences is to digitize it at good resolution and use a video projector. However, most Super-8 filmmakers, who are typically film-enthusiasts, will disapprove of this system as a betrayal of the spirit of the DOGMA 2020: FILM Manifesto.

Friend Jorge Suárez-Quiñones´s GS1200 Xenon in Madrid

The next alternative is blow-up the original Super-8 onto 16 mm film, either directly (ANDEC FILMS) or through a digital intermediate (Onda Radio Service in European Union or PRO 8MM in rest of the World). With relative modest 16 mm projectors, easy-to-find at affordable prices, a16mm print enables very good quality projections on the big screen. If the budget is not a problem, the blow-up can also be done at 35 mm.

IB Cinema´s GS1200 xenon in a theater

But for those purists looking to project the  original reversal film on the big screen (because the additional value that this film was physically on location of shooting), there is no choice but to turn to a few Super-8 projectors designed for the very specialiced purpose of being used in theaters: the Elmo GS1200 Xenon, the Beaulieu HTI and the Fumeo 9145 Xenon 500, being the 9145 the definitive projector.

Elmo GS1200 of filmmaker Jorge Suárez-Quiñones

ELMO GS 1200 XENON.

The light output from a xenon source is incomparable as its colour temperature, around 5.500 to 6.000 degrees Kelvin,   enhances almost magically all the high quality films such as Kodak Ektachrome 7294 or print stock Kodak Vision .

Among Super-8 xenon projectors, the easiest to find is the Elmo GS1200 Xenon which, with a 250 W lamp is capable to do superb projections on 6 meter wide screens.

For use the Elmo GS1200 in commercial theater, it is best to replace the original lens (either the f 1.0 or f 1.1) with the f 1.2 25-50mm long-distance lens, the sharpest variable focal lens ever made, and with a good deepth of field.

90th anniversary of Mickey Mouse, in Super-8, in a commercial theater, with GS1200 xenon

One of the main advantages of the Elmo GS1200 Xenon is that, thanks to its built-in electronic power supply for the lamp, it is as compact as the normal halogen projector, so only one person is necessary to transport and install. Its main drawback is the size of the reels, which is limited to 360 meters (1.200 ft) of triacetate (about 540 meters of polyester).

Elmo GS1200 Xenon with anamorphic

The Elmo GS1200 Xenon, like the fixed 35mm and 16mm booth projectors, has a douser, which allows the lamp to be kept on during reel changes, to increase its life (to about two thousand hours).

The main problem with the Elmo GS1200 Xenon is the same as with the halogen: its lamps are only manufactured every few years, so it is advisable to always have a spare one (changing the xenon lamp is a certainly complicated task in the GS1200 Xenon, which requires a good technical knowledge of the projector).

Beaulieu Studio HTI with Iscorama lens

BEAULIEU STEREO STUDIO HTI250

Osram, which commercially introduced xenon technology for cinema projectors in 1952, also introduced HTI technology,  in late 70s, especially adapted for Super-8 and 16mm projectors, not to compete with xenon, but with the then popular Marc300 or Gemini lamps, from General Electric, which, despite their high price, only lasted between 25 and 50 hours.

Beaulieu Studio HTI: French beauty

The only Super-8 cinema projectors to adopt the 250W Osram HTI lamp were a very small series of the Elmo GS1200, a few units of the highly sought Fumeo 9143 and, already on a larger scale of production, the Beaulieu Stereo cinema projector, with several versions, of which I own the last one produced, the Studio (I bought it in 1994 or 1995, with the optional separate power supply;  my unit can operate also with standard halogen lamps).

The Beaulieu HTI is the most powerful light output Super-8 projector ever made, capable to do extremely high quality projections on screens up to 12 meters wide (40 ft), which adds to its other features:

700 meter reels

1) Rear sprung pressure plate (in the lamp side): this allows to project films of different base thicknesses without the need to correct the focus (for example, polyester with triacetate in the same reel);

2) Micrometric focussing: the most perfect system ever made for Super-8, only superated by the latest Fumeo series.

3) Accurate fixed speeds at 18 and 24 f.p.s. but also variable adjustment.

4) Impressive stereophonic sound, with a spectacular sliders console.

5) Capacity 700 meters (2.500 ft) reels of triacetate (a complete feature film).

6) Special mount for anamorphic lens.

From the projection booth

Unlike the standard Stereo Studio projector with a halogen lamp, the HTI version lacks a variable shutter (it has the standard 3 blades shutter, to avoid light oscillations, I was told in the factory). In my version, it lacks also the athermic glass between the lamp and the gate window (which the Fumeo HTI 9143 does have) and the vital douser (which the Fumeo HTI 9143 also has): this forces the lamp to be switched off during reel changes (with the consequent decrease in duration - from about 250 hours, one hundred to full brightness);  early versions of Beaulieu HTI had douser.

In the same booth, Alex with Beaulieu HTI and Fumeo 9145 Xenon

FUMEO 9145 XENON 500

Fumeo is a brand little known outside the world of professional cinema, specializing in 16mm projectors with over dimensioned components, to outlast our lives despite continous use, that are still operatives, even today, in cinemateques, art houses, festivals and television stations like the BBC. In their day, they were installed in laboratories (Crest in Hollywood, Fotofilm in Barcelona and Madrid), and in a multitude of places from oil rigs to prestigious foundations and universities or, even, the Vatican.  Company was founded in 1928 by Amadeo Fumeo and the last owner was Angelo Bianchi, operative until 2007 (British branch was closed in 1995); Angelo died in 2010.

Fumeo 9145 Xenon 500, with rear 2.200 meters reel!!!

More than 30 years ago, when I was still single and building my home (in La Corunna, NW of Spain), I decided to buy Fumeo xenon proyectors for my projection booth, for showing 16 mm, Super8 and 35 mm slides.  For Super-8, I chose the Fumeo 9145, in “portable” configuration. Same machine was also available in pedestal configuration, as owned by Marco Sonetti. Pedestal version was designed by Angelo Bianchi himself for Bayer, the German chemical company, but purchased also by private film enthusiasts as Adriano Celentano, the famous Italian singer -a keen film collector- or Paolo Limiti (of Italian television).

Marco Sonetti´s Fumeo 9145 in rare pedestal version

The Fumeo 9145 is of all-metal construction with the use of plastic limited to buttoms and switches. The body weighs, with arms, almost 43 kg., with the later power supply unit add another 9 kg. (non fully electronic power supply is around 30 kg.)  In my projection booth, the power supply unit is the same used whether Super 8, 16 mm or 35 mm.
The driving motor is an AC 4 poles one thant differs from the DC motors usually used in other 8 mm projectors. This one has proved fautless during 32 years of continuous use and it should last forever.

My Fumeo 9145 was slightly different from the one sold in London by The Widescreen Centre or in Germany by Scoptimax.  Mine was called Fumeo 9145 HD2000 Stereo Xenon Pro X4, with stereo magnetic sound, optical sound an Puls Sync sound. The version sold by in England by Tony Shapps and in Germany by Dietrich Kempsky was with mono sound and without Puls Sync sound.
One ot the best features of the Fumeo company is that all their range of projectors were built individually, like a masterpiece. I mean by this than each projector was made to my own special requeriments. Between a Fumeo motion picture projector and a Japanese video projector there is not only an abyss, there is a different concept of life.

Rare pedestal version as owned by Marco Sonetti

4 MOTORS.

In addition to the driving motor, this Fumeo has another three motors: one in each arm and another one for the blower fan. The motors in the arms are adjustable so that the film drag does not incur slackening, plus there is a braking system to avoid loose spools!

Alex working with the Fumeo 9145

POWERFUL COOLING FAN.

The powerful cooling fan (40 m3/hour), is very efficient, so good in fact that, even with the anticalorific glass filter removed, the temperature on the film is well within the standard limits.
Following Fumeo´s 16 mm practice, the 9145 is a playback only projector, as recognised from most professional projectionists (although recording facilities were available  when I ordered my projector; in fact, my Fumeo 9140 -with Marc 300 lamp-, has recording facilities, but of course I use other projectors for recording the sound)

Filmmaker Keichi from Japan visiting IB Cinema

MANUAL THREADING

In the Fumeo 9145 the film threading is thankfully manual, an absolute necessity for the keen filmmaker and film collector. This is not only the safest and kindest way to lace up our precious movies, but conforms to that of the professional cinema.  My Fumeo 9145 have proved that this machines treat my much-loved films with respect, even after 250 runs of a "green" film (recently processed film, with the emulsion still soft), there was not a scratch, surely one  of the most important points of all.

In this 33 years I have married, my two children were growing up (my son Daniel is now an engineer y Veronica is studying to be a Doctor as my wife), the Fumeo 9145 projector has brought me hours and hours of projection (about 8.000 hours), without any problem other than one change of the stereo head and the xenon lamp.
In 2007, I have changed the stereo head: I wrote an email to Fumeo (in those times, a division of World Broadcast Systems), and Fumeo sent me a new stereo head by 180 euro, twenty years after the sale of the projector!!! Try writing to a Japanese company to buy a spare for your expensive video projector bought yesterday: nobody will anwer you.
Even today, certain spares, as magnetic heads and others, are still available via Marco Sonetti.

CLAW TO GATE RATIO OF +2

As my Fujica ZC1000 camera, the Fumeo 9145 has a claw to gate ratio of +2. The two-tooth claw system and aperture plates are made from hardened steel, with a pressure of diecast alluminium. Like the Beaulieu, the Elmo and the Braun Visacustic, the lens is carried on a hinge mounting that opens to give complete access for cleaning and film threading. I´m very demanding with the sharpness and steadiness of the projected picture. For this, I shoot my personal movies preferently with the Fujica ZC1000 using the Single-8 cartridges.

A Single-8 motion picture film has the same perforations, width and picture frame area as Super-8mm film. Single-8 may be projected on any Super-8 projector. The differences are in the design of the cartridge. Unlike Super-8´s radial path, the feed and take-up rolls lie in Single-8 side by side in the same plane.

Consequently, the Single-8 film runs in a straight line between both halves of the cartridge and drops between the metallic pressure plate and front aperture. The result: incredible picture steadiness and sharpness edge to edge, thanks not only to this projector, but also to the Single-8 system for Super-8 film.
When I project a film shoot with the Fujica ZC1000 using the Fumeo 9145 the steadiness of the frameline is absolutely perfect, the best I have witnessed on 8. This has to be partially accredited to the excellent system of sprockets, rollers and gate of the Fumeo 9145.

2200 METERS / 7600 FT BIG REELS
The two motorized arms have a capacity of 2200 meters of triacetate film (more than 3.000 meters with some kinds of polyester!). My 2.200 meters/7.600 ft. spools were built in Spain by Julio Castells.
SHUTTER.
Fumeo 9145 projector came originally with a 3-blade shutter and another 3-blade shutter to change manually. Fumeo factory also designed a special 3 blade shutter which, automatically, thanks to a centrifugal mechanism, changes to 2 blades when you switch the projector to 24 f.p.s. from 18 f.p.s

LENSES
My Fumeo 9145 come from the factory with one Isco Vario MC8 f 1.1 11-30 mm, from the last batch. In those times, the beloved and never forgotten Ivan Watson wrote to me several times telling me that, in his opinion, this was the best zoom lens available. Until now, I have used the Fumeo 9145 with the original lens but also with the very similar Schneider Xenovaron 11-30 mm (both versions, f 1.1 and f 1.3), the Kern Switar Vario 12.5-28 mm, the Meopta f 1.1 12.5-25 mm and the truly fantastic Kern Switar f 1.1 23 mm.   Recently, I bought too an Isco Kiptagon f 1.3 20 mm (still available new, in Italy, from old stock, from Marco Sonetti.
Very soon I will be able to use too the best zoom lenses ever made for Super-8 format: the Elmo 1.0, 1.2 and 1.4 zoom lenses (last two, for long distance), thanks to my American friend Alan Gougar. He kindly sent me as a gift the special lens holder for the Elmo lenses, as seen in next photograph (from Alan´s projector).

MICROMETRICAL FOCUSSING.
As I wrote previously, the prime lens holder is a swing open type and with an extreme high quality micrometric focussing system, better even than the one in the Beaulieu Studio, and, for this reason, the best ever for the 8 mm gauge, with absolutely no backlash

A BOMB OF LIGHT!
The Fumeo 9145 is the most powerful projector in the world, with its 500 watt horizontal Xenon lamp inside an electroformed reflector made from pure nickel. In my unit, the reflector is the special one, with the optional cold light treatment in order to increase the reflectivity of the mirror an extra 15 per cent.

This Xenon lamp (Osram XBO 500 watt) is the same currently used in Fumeo and other european brands in 16 mm and 35 mm projectors.  There are thousands and thousands of projectors in the world using this lamp, so, Osram (and other makers) will manufacture this lamp in the years to come (not as happen with the rare Elmo 250 watt Xenon lamp).

With the Osram XBO lamp the price per hour of projection is very cheap, officially, you need to change the lamp at 2000 hours of use, but I changed mine at 3.250 hours!
But, is this Fumeo 9145, with the 500 watt xenon lamp, the brightest Super 8mm projector? The answer, incredible, is no. As I wrote previously, even brighter is the Beaulieu Studio HTI, because the HTI250 lamp is specially designed for the small Super-8 window. Fumeo 9145 is only slightly less bright than the Beaulieu Studio HTI, but Xenon lamp is long-lasting, is cheap to run and I can find it easily even in my city!

State of art lens for the Fumeo: Kern f 1.1 23 mm

SOUND: FLYWHEEL OF 1.4 KG.
My Fumeo 9145 came from the factory with a monophonic amplifier but with a stereo magnetic head with its stereo preamplifier and a stereo output, to plug directly in the theater amplifier.  The Fumeo 9145 can also play films with optical tracks, very nice to enjoy ex airline super-8 prints.
My 9145 can also play films with Puls Sync. A special device, inside the projector, do the pulses thanks to the light of the shutter!  I have used this system many years ago, with some airline prints with optical track in English and the Spanish sound in a tape recorder.

The sound from the 9145 is very smooth (a must when you plug the equipment to a high fidelity amplifier and the projector is in the booth, without any noise in the theater), thanks to the special design of the sound dum and flywheel (1.4 kilos!), assembled on very high precission ball bearing, and a ratio in diameter between the two of 10:1, to ensure the highest stabilisation of the sound.

In my opinion, after use a lot of high end projectors, the Fumeo 9145 is the ideal projector for a film collector, as me, who enjoys projecting films to others, and seeing the film itself travelling accross the rollers of the projector.
I like its professional "feel", its smell to oil, with minimum use of plastics.

With regular lubrication after 50 hours of projection (the instruction manual explain standard servicing), the Fumeo 9145 is a machine that will probably last forever.
As I wrote in 1992 in the American magazine The Big Reel (sic): "the Fumeo 9145 is the definitive tool (not a toy) able to still be showing films in the yer 2050. Because in 2050, what will happen with all these mass market projectors made with short-life DC motors and a lot of electronic or plastic components?"

Fumeo 9143 HTI

The instruction manual came with the full circuit diagrams: almost all the electronic components used by Fumeo are very easy to find round the corner in a middle sized city such as mine, in the land´s end of the Roman Imperium (La Corunna, in NW of Spain).

In my city, there are two Fumeo 9145: the other one, the standard mono version, is owned from the regional film archive and its in use from 1994 until now.
The Fumeo 9145 is, for me, the definitive super 8 projector for big screen profesional presentations in comercial theaters with booth.

Rare Fumeo 9143 HTI250 Stereo, in IB Cinema

In this series of ten articles, a digest of the one published in the international magazine SilverGrain Classics, are described the most interesting projectors to buy, depending on the use they will be put to.

Originally published in SilverGrain Classics

Part 1 of 10, click here

Part 2 of 10, click here

Part 3 of 10, click here

Part 4 of 10, click here

Part 5 of 10, click here

Part 6 of 10, click here

Part 7 of 10, click here

Part 8 of 10, click here

Part 9 of 10, click here

Addendum click here

Which is the best zoom to buy? Article about high quality zooms in European size.
